The Wireless Set No. 18 was a British Army portable radio transmitter and receiver developed shortly before the Second World War and introduced into service in 1940.
It became one of the most important British infantry radio sets of the war, providing communication between battalion headquarters and companies operating in the field.
Unlike the Wireless Set No. 19, which was primarily intended for tanks and other vehicles, the No. 18 was designed to be carried on a soldier's back.
Technical specifications:
- Introduced: 1940
- Manufacturer: Pye and other British manufacturers
- Frequency coverage: 6–9 MHz
- Wavelength: Approximately 33–50 metres
- Transmitter output: Approximately 0.25 watts
- Modulation: AM speech (R/T) and Morse (CW)
- Receiver: Valve-operated, tunable
- Frequency control: Master oscillator
- Power supply: Combined dry batteries
- Operating range: Typically a few miles, up to about 10 miles under favourable conditions
- Construction: Pressed-steel case with carrying harness
Wireless Set No. 18:
The No. 18 originated from work on an earlier military radio known as the Wireless Set No. 8. The original equipment was considered too heavy and cumbersome for infantry use. Pye redesigned the construction, introducing a lightweight ribbed metal case while retaining the essential radio circuitry. In 1939, prototypes were sent to France for field trials. The design proved successful, and production began in 1940. Approximately 76,000 Wireless Set No. 18 units were eventually manufactured.
One of the first transceivers I owned was a WS No 18 set. I hooked it up to a homebrew power supply and an aerial and it worked! I was 16 at the time and didn’t have a license but, when I heard a chap calling CQ on 40 metres, I had to reply. Using a made-up call sign, I gave him a shout and he heard me! He was in Southampton, which was about 40 miles from my home QTH. Crikey, I couldn’t believe it! It wasn’t long before I bought my first WS No 19 set. A far superior radio to the 18 set.
I was more than a little surprised to make a contact over that distance with 250 mW and an end-fed wire aerial.
Aerials and power
The set could use aerial rods which, along with other accessories, were carried in a canvas haversack. It normally ran from a combined dry-cell pack called a battle battery, fitted inside the case. For longer use, Power Supply Unit No. 5 provided the required voltages from a rechargeable accumulator, with a hand-cranked generator used to keep it charged while operating.
The No. 18 and No. 38 filled different infantry roles. The No. 18 covered 6-9 MHz and was intended for communication between company and battalion headquarters. The No. 38 covered roughly 7.3-9 MHz, had similar low transmitter power, and was a smaller, simpler set used for shorter-range links. Its range is often given as around four miles, though actual performance depended on aerials and conditions.
The No. 18 in service
Three wartime photographs from the Imperial War Museum collection.



The Wireless Set No. 18 was the first mass-production infantry manpack radio in Britain. It was a Pye redesign, made in late 1939, of a heavier Signals Experimental Establishment (SEE) set. It was issued from 1940, and about 76,000 were built by Pye, Invicta, Murphy, Bush and EKCO by 1945. It was a six-valve, 2 V battery-valve transceiver with a separate sender and receiver in a ribbed tin-plate backpack. It covered 6–9 MHz at about 0.25 W.
The Mk I was AM telephony only, and the Mk II and Mk III added CW.
The design team included Donald H. Hughes, also named as a senior designer of the WS19, and William Pannell, who later led the WS62 design. Materials were dictated by wartime shortages. Pye wanted aluminium, moved to sheet steel, and then settled on thin tin-plate with deep ribbing.

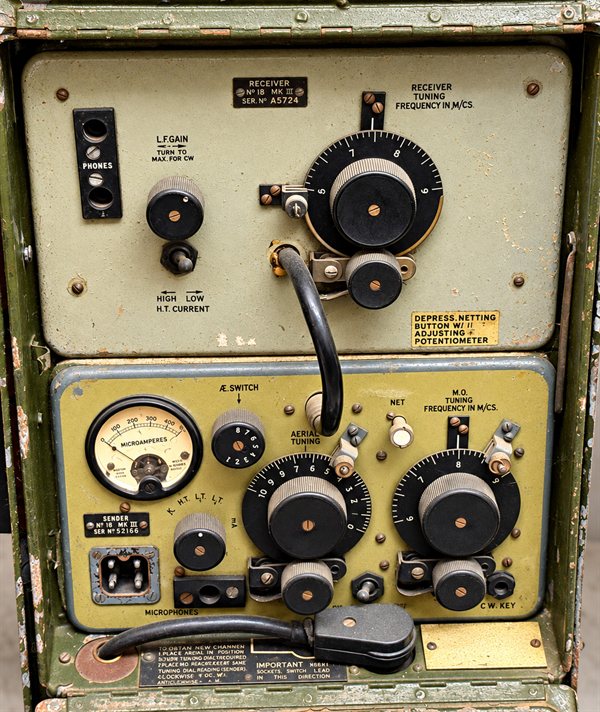

It’s amazing to think that the transmitter power was only 250 mW. The radio is a master-oscillator-controlled HF transceiver: the transmitter frequency is set by a free-running oscillator, not a crystal. It has separate tuneable sender and receiver units joined by a rubber-covered cable with a 5-pin plug.
The receiver is a single-conversion superhet with a 465 kHz IF. Selectivity is quoted as 7 kHz with no reference level. Audio goes to headphones or an external amplifier; there is no internal loudspeaker. The Mk III sender has an aerial-current meter, fed by a current transformer and a selenium rectifier. It also has a tank coil and an aerial switch.
