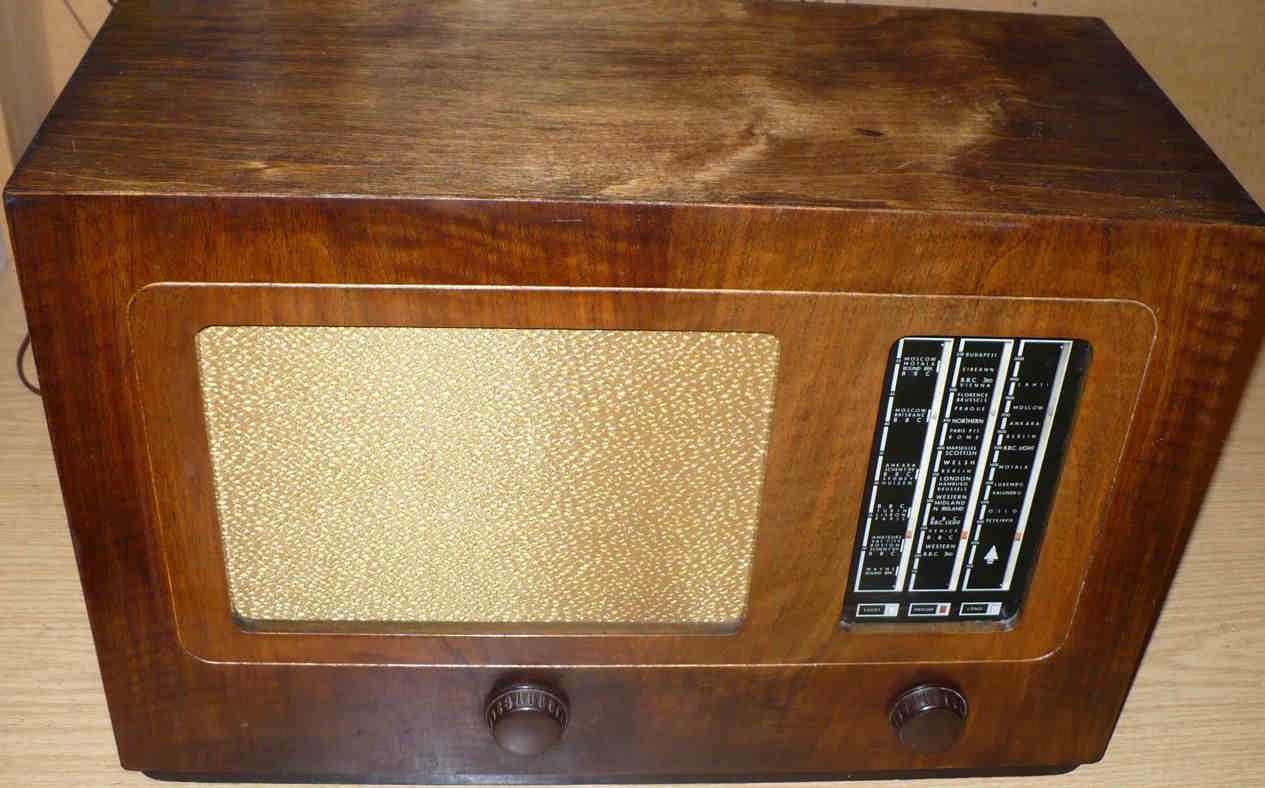

This radio is quite rare. It’s uses a modified Bush AC91 chassis and covers short wave as well as long and medium wave. If you know the DAC90 or AC91, you’ll recall that the tuning knob is on the right hand side of the cabinet. That’s the case with this radio, leaving just two control knobs looking rather lonely on the front. It’s a lovely old radio with a decent size speaker. Perhaps a little too large for smaller rooms.
RADIO SPECIFICATIONS
Manufactured from 1947
Long Medium and Short Wave
Valves – CCH35 – EF39 – EBC33
CL33 – CY31
AC Supply
SERVICE MANUAL PREVIEW
The original Bush service manual for the AC1 and DAC1 is available to members. Here's a taste of what's inside.
These pictures are faded on purpose, just for this preview. Members get the complete manual, unfaded, to view and download.
The manual includes:
- The full circuit diagram and valve base connections
- Capacitor, resistor and coil values with Bush part numbers
- Valve voltages and currents, and mains transformer details
- Step by step IF and RF alignment
- Servicing notes for tracking down faults
- How to dismantle the set and fit a new wire drive
- Labelled photos of the top and underneath of the chassis
