Bush AC2

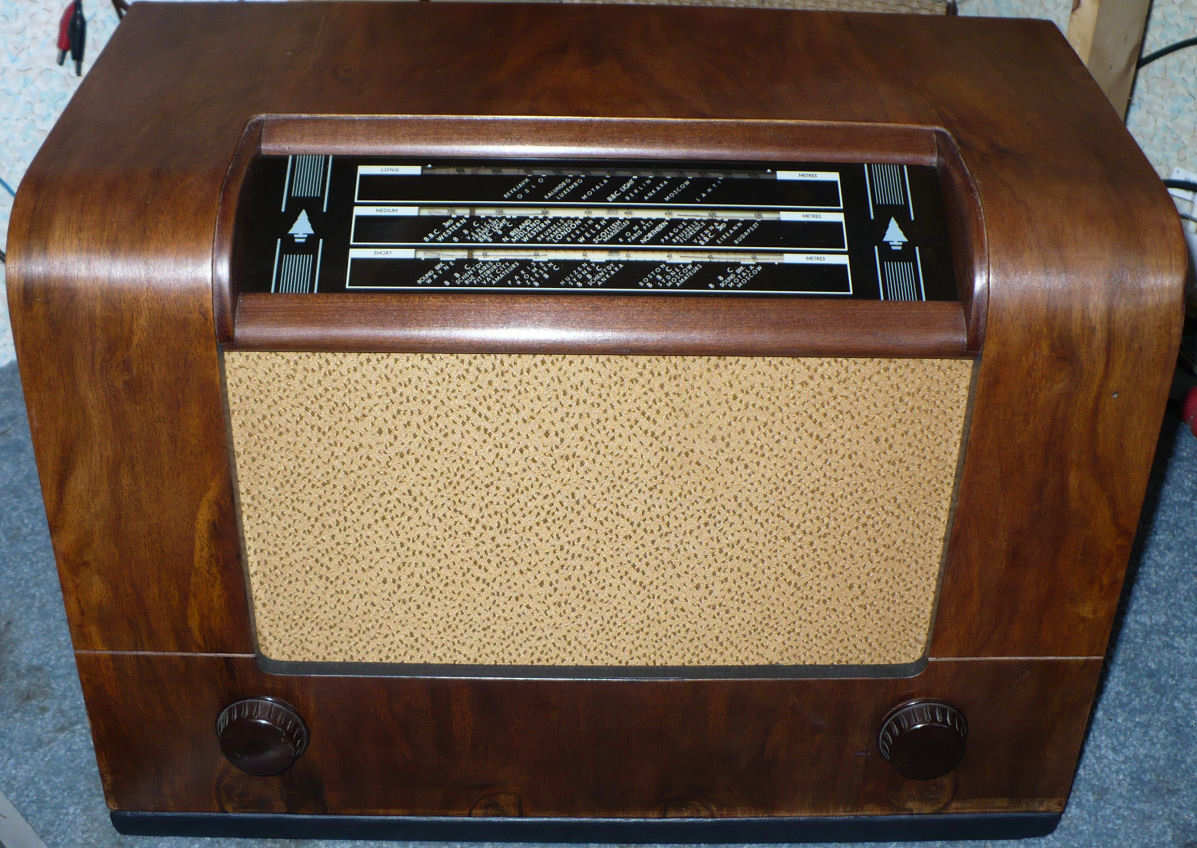

Bush AC2 radio. Rounded walnut cabinet with a horizontal tuning scale across the top, a gold speaker cloth below it and a knob at each lower cornerThis radio was in a hell of a state when I retrieved it from a friend’s garage. It was damp and the veneer had lifted, the varnish felt like sandpaper to the touch and the radio didn’t work and had some dreadful faults. But it was manufactured in 1947 and I just had to restore it to its former beauty. So far, it’s taken me tens of hours, but the end result will be worth it. Do I want to sell it? No way! The radio is now finished, and it’s beautiful.

RADIO SPECIFICATIONS

Manufactured from 1947
Long Medium and Short Wave
Valves – CCH35 – EF39 – EBC33
CL33 – CY31
AC Supply

SERVICE MANUAL PREVIEW

The original Bush service manual for the AC2 and DAC2 is available to members. Here's a taste of what's inside.

Front cover of the Bush AC2 and DAC2 service instructions, with a photo of the receiver
Front cover
Circuit diagram of the Bush AC2
Circuit diagram
Top view of the chassis with parts labelled
Top chassis view
Underneath view of the chassis with components labelled
Underneath chassis view

These pictures are faded on purpose, just for this preview. Members get the complete manual, unfaded, to view and download.

The manual includes:

  • The full circuit diagram, with a quick reference table of component values
  • Capacitor, resistor and coil values with Bush part numbers
  • Valve voltages and currents, and mains transformer details
  • Step by step IF and RF alignment
  • Servicing notes for tracking down faults
  • How to dismantle the set, fit a new cord drive and replace the scale lamps
  • Labelled photos of the top and underneath of the chassis

Join the Members' Area to see the full manual
