Bush DAC41

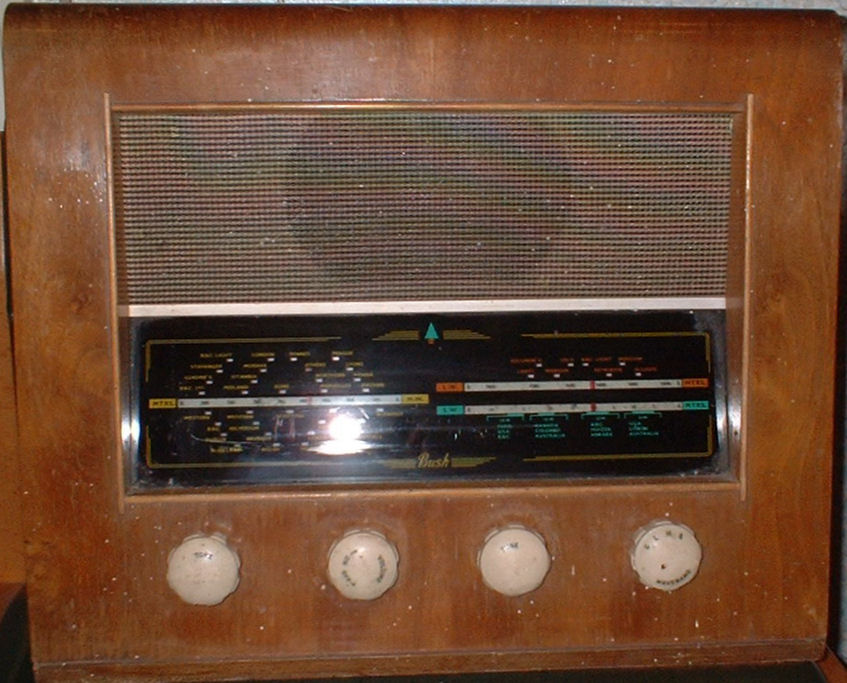

Bush DAC41 radio. Walnut cabinet with a silver mesh speaker grille above a wide black tuning scale and four cream knobs on a pale wood stripUnlike most vintage radios in my collection, the Bush DAC41 doesn’t have it’s own frame aerial. There is, of course, an aerial socket on the rear of the radio.

The set is AC/DC and has long, medium and short wave bands. I must say that, although not one of the most expensive radios of its time, it’s certainly one of my favourites.

RADIO SPECIFICATIONS
Manufactured from 1954
Long Medium and Short Wave
Valves – UCH42 UBF80 UL41 UY41
AC/DC Supply

SERVICE MANUAL PREVIEW

The original Bush service manual for the AC41 and DAC41 is available to members. Here's a taste of what's inside.

Front cover of the Bush DAC41 and AC41 service instructions, with a photo of the receiver
Front cover
Circuit diagram of the Bush DAC41
Circuit diagram
Top view of the chassis with parts labelled
Top chassis view
Underneath view of the chassis with components labelled
Underneath chassis view

These pictures are faded on purpose, just for this preview. Members get the complete manual, unfaded, to view and download.

The manual includes:

  • Circuit diagrams for both the AC41 and the DAC41
  • Capacitor, resistor, coil and transformer values with Bush part numbers
  • Valve voltages and currents for both models
  • Step by step IF and RF alignment, with coil and trimmer locations
  • Coil deck connections and dismantling
  • How to fit a new cord drive
  • Labelled photos of the top and underneath of the chassis

Join the Members' Area to see the full manual
