Ekco model U353 radio

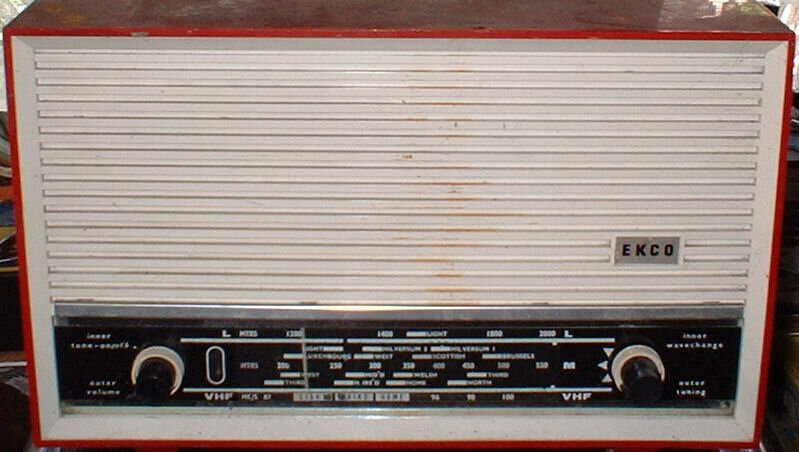

Ekco U353 radio. Red and white cabinet with a white louvred speaker grille, an EKCO badge and a black tuning scale with a knob at each end

The Ekco U353 is a British valve radio introduced in 1959, manufactured by E.K. Cole Ltd. of Southend-on-Sea, Essex. It is an interesting example of late-1950s radio design, combining traditional medium- and long-wave reception with the then relatively new VHF/FM broadcasting.

Valves:

  • UCC85 – VHF/FM front-end
  • UCH81 – AM frequency changer
  • UF89 – Intermediate-frequency amplification
  • UABC80 – Detection and audio preamplification
  • UL84 – Audio output
  • UY85 – Mains rectifier
  • DM70 – Visual tuning indicator
