Murphy radio model A684

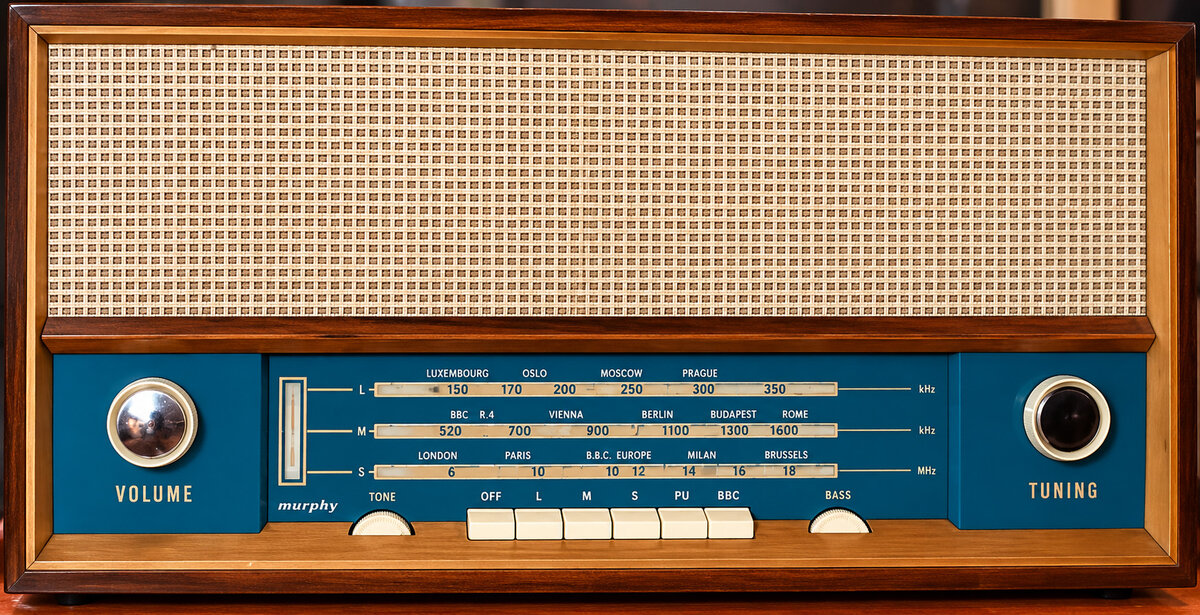

Murphy A684 radio. Wide wooden cabinet with a cream square-mesh speaker grille above a blue tuning panel, a row of cream push buttons, and volume and tuning knobs at each end

The Murphy A684 is a British-made, seven-valve table radio introduced in August 1960 by Murphy Radio Ltd of Welwyn Garden City, Hertfordshire. It was one of Murphy's higher-quality domestic receivers, combining VHF/FM reception with traditional medium and long wavebands.

The A684 was essentially the wooden-cabinet version of the Murphy A674, which had been introduced in June 1960. Both models shared the same basic electronic design.

Valves:

  • 6L12: VHF/FM front-end
  • 6C12: frequency conversion
  • 6F18: intermediate-frequency amplification
  • 6LD12: detection and audio functions
  • 6P15: audio output
  • EZ80: HT mains rectifier
  • EM84: magic-eye tuning indicator

The EM84 tuning indicator is a particularly appealing feature. It produces a green illuminated display that changes as the receiver is tuned to a station.

The 6P15 output valve provides the audio power to drive the loudspeaker system, while the EZ80 supplies the high-tension DC voltage required by the receiver.

SERVICE MANUAL PREVIEW

The original Murphy service manual for the A674 and A684 is available to members. Here's a taste of what's inside.

The specification page of the Murphy service manual for the A674 and A684, with photos of the radios
Specification
Circuit diagram of the Murphy A674 and A684
Circuit diagram
Photo of the top of the Murphy A684 chassis
Top of the chassis
Photo of the underneath of the Murphy A684 chassis
Underneath of the chassis

These pictures are faded on purpose, just for this preview. Members get the complete service manual, unfaded, to view and download.

The service manual includes:

  • The specification and valve line-up
  • The full circuit diagram
  • Electrical notes, including the tape recorder connections
  • Mechanical notes, including how to remove the chassis
  • The wiring of the VHF unit, and the alternative valves
  • Step by step circuit alignment for AM and FM
  • The tuning drive
  • Parts lists for the electrical and mechanical components
